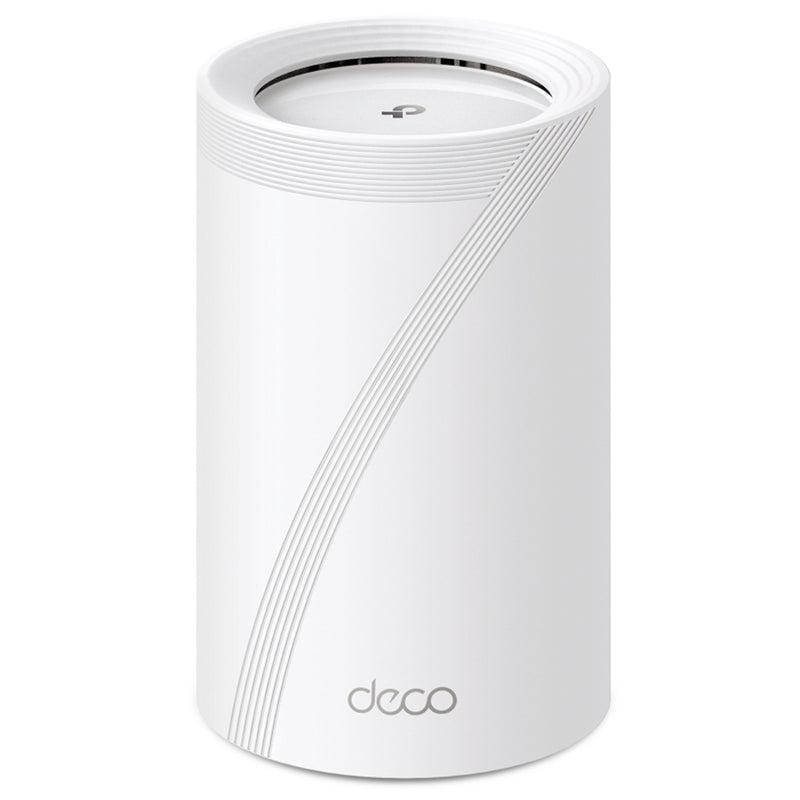

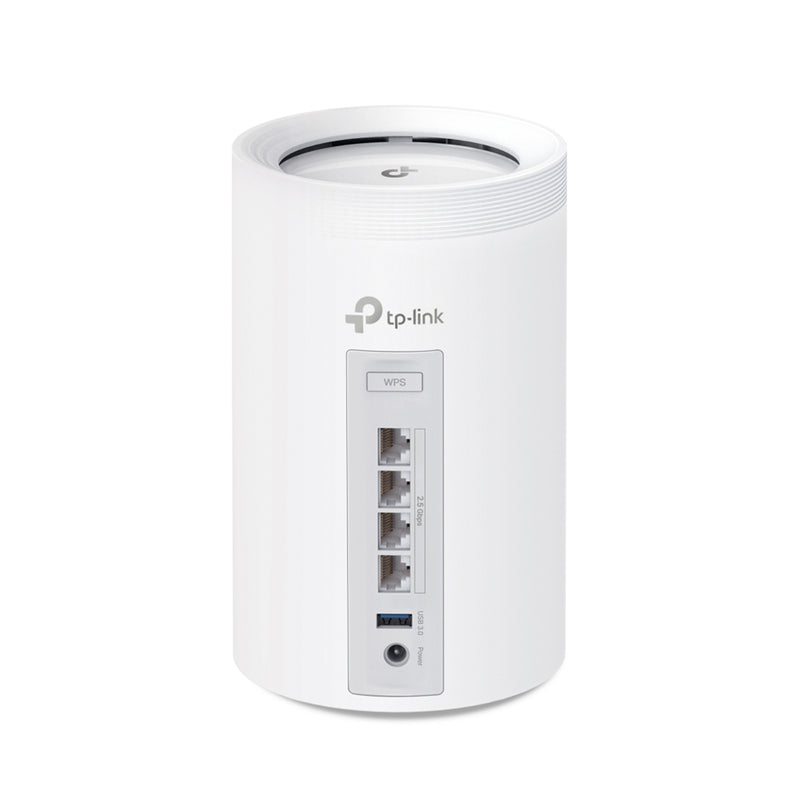

TP-Link Deco BE65 (BE11000) Tri-Band WiFi 7 Whole Home Mesh System - 1 Pack

Term:

$25 per week, a total of $600. Delivery to your door after 24 successful payments!
Apply now
100% Traditional Laybuy. Delivery after full payment.
Attention, eager beaver! Need your delivery in a flash?
No worries, mate! We're here to save the day! Just give us an email at contact@layawayau.com and let us know if you would like to pay more or less each week. Rest assured, we'll also provide you with an estimated delivery date when we make these changes. So don't you worry, your delivery dreams are in safe hands!



IRG5410 Cellular LTE Routers

- Enterprise-Class Edge Cellular Routers & Gateways
- LTE Router for Primary or Failover Connectivity
- Out of band management for remote troubleshooting
- LTE-Advanced (LTE-A and LTE-A Pro) for 10x faster downlink speeds and 3x faster uplink speeds
- Cloud Hosting -- Deploy and manage your network from the cloud
- Network connectivity via LTE, 10/100/1000 Ethernet, USB 3.2, and RS232 Serial
- Enhanced Security with Two-Factor Authentication (2FA)

Overview

Perle IRG5410 LTE Routers and Gateways have the most comprehensive set of features, functionality, and performance to provide primary or failover back-up connectivity to remote infrastructure and assets. These ultra-low-power, rugged, high-performance Cellular Routers, with dual-SIM slots, are easily deployed with no need for training because of the intuitive web GUI. For advanced admin scrips, CLI commands are also available.

Perle IRG5410 LTE Routers provide fast and reliable network connectivity where wired options are impossible to deploy or require a backup. This is crucial for enabling a wide range of applications while ensuring the highest degree of security to protect the integrity of critical services. Reduce the cost of downtime and service calls, and bringing distributed sites online faster. With support for Data, SMS, Voice, and Video, an IRG5410 and can be integrated into any enterprise cloud, building, industrial, or mobile location network infrastructure.

- Building and process automation controllers, Internet of Things (IoT)
- Smart grid assets (meters, switches, controllers), Telco infrastructure controllers
- SCADA, Distribution management systems, Remote data loggers, flow meters, sensing equipment
- Digital signage, ATMs, POS, Kiosks, Temporary "pop-up" stores
- Video surveillance, Mobile hotspots
- Fleet management, GPS/GNSS Location tracking, Taxis, vehicle area networking (VAN)
- Transit systems, Buses, Metro Subways, Railways

Cellular Band Operation Certified Worldwide over 4G LTE, DC-HSPA+, HSPA+, HSPA, and UMTS (WCDMA)

Perle IRG5410 Routers and Gateways have two cellular options to ensure support for your carrier's primary bands in deployment areas:

1. IRG5410+: LTE-A PRO CAT12. 600Mbps downlink and 150Mbps uplink speeds. Support for 24x LTE Bands and 9x UMTS/WCDMA Bands
2. IRG5410: LTE-A CAT6. 300Mbps downlink and 50Mbps uplink speeds. Support for 15x LTE Bands and 6x UMTS/WCDMA Bands

Edge Routers with Enterprise-Grade Routing Capabilities

IRG5410 routers have all the of the advance routing functionality found in the most advanced enterprise routers. Extensive protocol routing support means they can be easily deployed in hierarchical or large mesh network structures. A fast CPU and lots of memory ensure the router can handle a consistent and heavy workload all day long.

- RIP, RIPv2, RIPng, OSPFv1/2/3, BGP-4
- When BGP peering with multiple ISPs, the IRG5410 delivers carrier-grade routing performance that is capable of handling the full internet routing table
- IPv4 & IPv6
- OpenVPN & IPSec VPN
- DHCP & DHCPv6
- IP Passthrough for deployments requiring the router to operate in Gateway or Bridge mode
- Route between any interface (LTE, Ethernet, USB, or serial RS232)
- Reduce unwanted network traffic by creating collision and/or broadcast domains

For more information: https://www.perle.com/products/routers-gateways/irg5410-cellular-lte-routers.shtml

Cellular

LTE LTE-A CAT6. 300Mbps downlink and 50Mbps uplink speeds

Frequency Bands

Data & SMS Operation over 4G LTE with fallback networks DC-HSPA+ / HSPA+ / HSPA / UMTS (WCDMA)

4G/LTE Bands (15)
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 800(B20), 1900(B25), 850(B26), 700(B29), 2300(B30), TDD B41

3G HSPA/HSPA+ Bands (6)
2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 900(B8)

Public Safety Band Band 26

Cellular Antenna

Frequency Range: 704-902-928-960/1427.9-1575.42/1710-2170/2400-2480-2690MHz
Gain: 3 dBi
Impedance: 50 ohm
Voltage Standing Wave Ratio: <3.0 (typical)
Radiation: Omni-Directional
Connector: SMA Male (Swivel)
Dimensions: 135.6 x 20.1 mm / 5.34 x 0.8 in

SIM Dual Mini-SIM 15 x 25mm (or 2FF )

GPS / GNSS

Wide-band GNSS: 1559-1606 MHz
GPS: 1575.42 MHz / GLONASS: 1602 MHz / BeiDou: 1561.098 MHz / Galileo: 1575.42 MHz / QZSS: 1575.42 MHz
Simultaneous tracking: Up to 30 channels
Active GNSS antenna support
Reports: NMEA 0183 V3.0, TAIP

GPS / GNSS Passive Antenna

GNSS Applications: GPS, Glonass, Galileo, Beidou
Frequency Range: 1561MHz~1606 MHz
Gain: 4 dBi (typical)
Impedance: 50 Ohm
Voltage Standing Wave Ratio: 2.0 (typical)
Polarization: RHCP
SMA (M) straight
Dimensions: 41.9 x 47.3 x 16.3 mm / 1.65 x 1.86 x 0.64 in
RG-174 Cable Lenght: 5 m / 16.4 ft

10/100/1000 Mbps Ethernet RJ45 Copper

Ports 1 x 10/100/1000 Mbps Ethernet RJ45 Copper

Speed

Software selectable 10/100/1000 Ethernet, Auto
Software selectable Half/Full/Auto duplex

Ethernet Isolation 1.5Kv Magnetic

Standards

IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3ab for 1000Base-T, IEEE 802.3x for Flow Control

Processing Type Store and Forward

MAC Address Table Size 8K

VLAN ID range 1 to 4000

USB

USB-C 1 x USB 3.2 Type-C with a transfer rate up to 5Gbps
Configurable for Ethernet over USB

Serial RS232 Serial

1 x RS232 DB9 female connector
Serial Port Speeds: 300bps to 230Kbps with customizable baud rate support
Data Bits: 5,6,7,8-bit protocol support
Parity: Odd, Even, Mark, Space, None
Flow Control: Hardware, Software, Both, None
Serial Port Protection: 15Kv Electrostatic Discharge Protection ( ESD )
Processing Type - Store and Forward

Power Connector

One GPIO Input

Digital Input & Pulse Counting VDC: 0 for = 1V, 1 for = 2.7V
Dry Contact Max Current range: min 0.6mA @ 7V and max 3.5mA @ 36V
Current Sink Output: 0.5A @ 12v

Ignition Sense

Analog Input: 0.5V to 36V
